Garbage Collection
JVM runs a GC Demon Thread which periodically frees up memory occupied by non-referenced objects in the Heap. An object is eligible for Garbage Collection if there are no live references of that Object. The behavior of Garbage Collection in JVM differs between different sections of Heap. The Heap is primarily divided into 3 sections:
- Young Generation – This is where all new objects are allocated and aged. When the young generation fills up, this causes a minor garbage collection. Some surviving objects are aged and eventually moved to the old generation.
- Old Generation – This is used to store long surviving objects. Typically, a threshold is set for young generation object and when that age is met, the object gets moved to the old generation. Eventually the old generation needs to be collected. This event is called a major garbage collection.
- Permanent generation – This contains metadata required by the JVM to describe the classes and methods used in the application. It contains the Method Area and String Pool Area. The permanent generation is included in a full garbage collection.
** Major GC is slower than the Minor GC because Major GC involves live Objects.
Object Allocation, Ageing and Garbage Collection
New
objects are allocated to the eden space. Both survivor spaces start out empty.
When
the eden space fills up, a minor garbage collection is triggered.

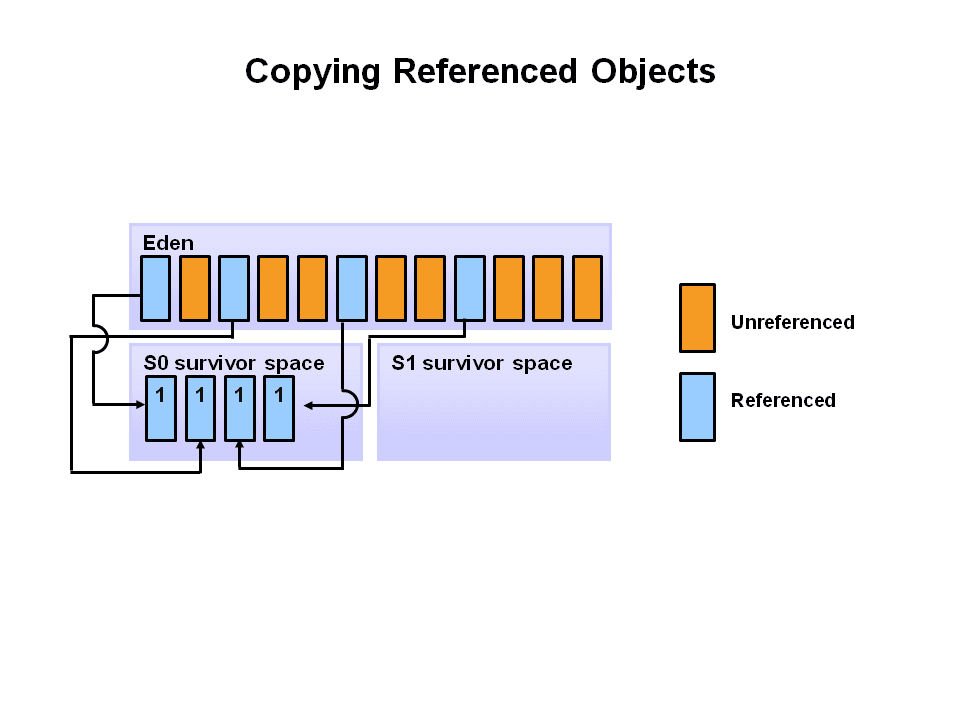

Surviving
objects from eden space are moved to the first survivor space. Unreferenced
objects are deleted when minor garbage collection is triggered in eden space.
At
the next minor GC, surviving objects from eden space are moved to the second
survivor space along with that Objects from first survivor space are aged and
moved to second survivor space. Once all surviving objects have been moved to second
survivor space, both first survivor space and eden are cleared
At
the next minor GC, the same process repeats. However this time the survivor
spaces switch. Referenced objects are moved to first survivor space. Surviving
objects are aged. Eden and second survivor space are cleared.
At
the next minor GC, aged objects which has reached a certain Threshold are moved
to Old Generation
As
minor GCs continue to occure objects will continue to be promoted to the old
generation space.
Eventually,
a major GC will be performed on the old generation which cleans up and compacts
that space.
